M-10
Custom-designed high efficiency prop, made from durable marine grade aluminium. Comes with adjustable resistance throttle with power unlock/reverse safety button and a custom-designed quick release mount interface.

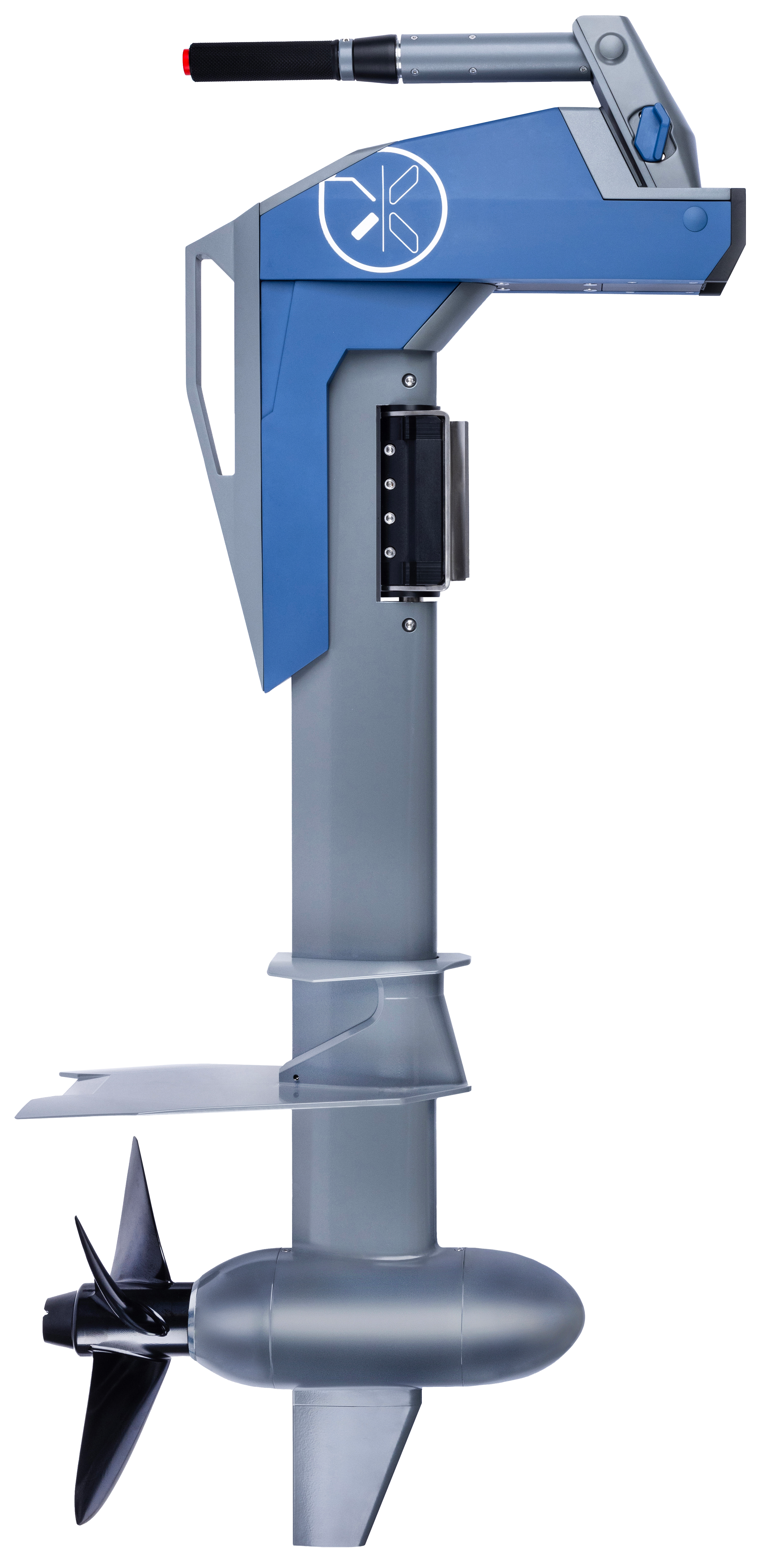

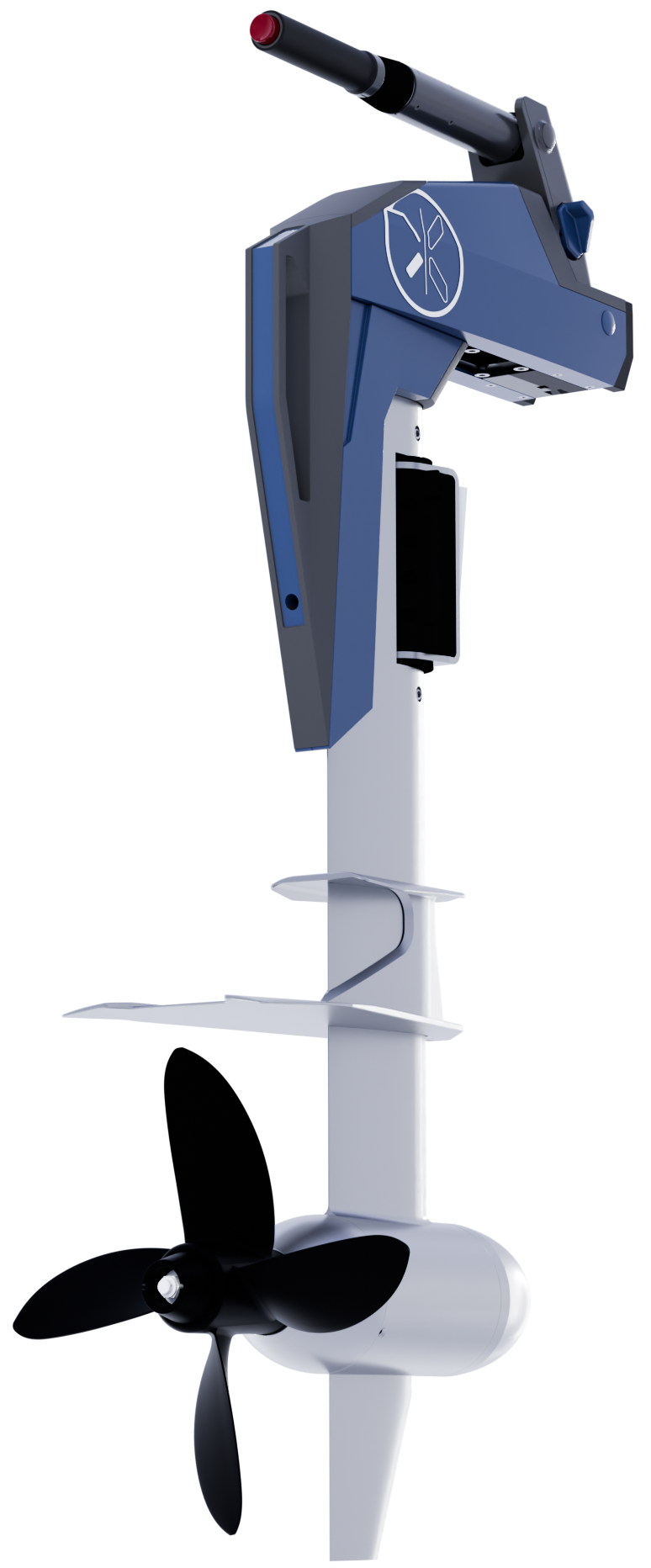

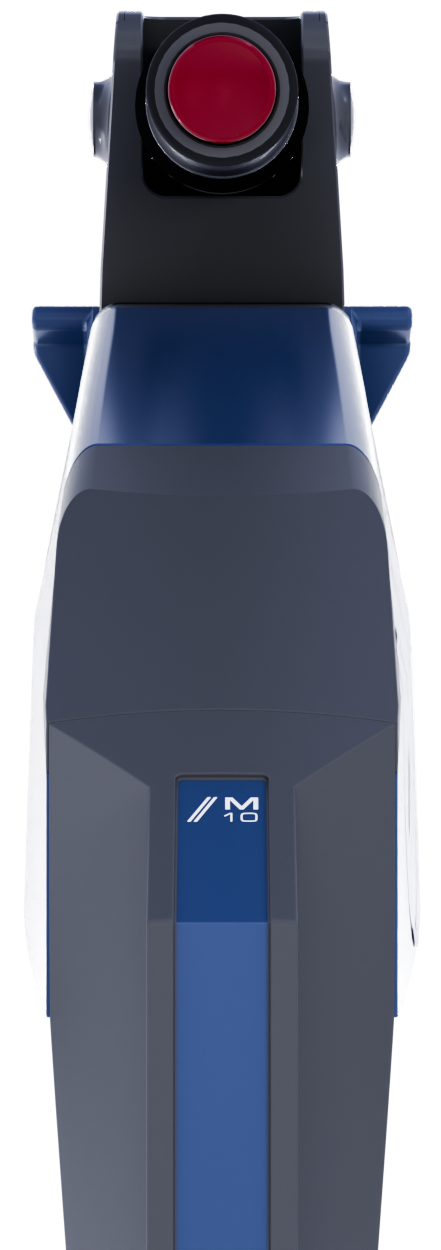

TECHNICAL M-10 ELECTRIC OUTBOARD MOTOR

MAX INPUT POWER
10KW
SHAFT LENGTH
39cm short / 52cm long
Prop diameter
34cm
No. of blades
4
Cooling system
100% external passive seawater
Trip computer
Integrated GPS power and range display
Weight
OBM + Prop: 22kg, Mount: 6kg
m10-section-second-section-image
1
2
3
4
5
6
7

Integrated trip computer with high-contrast color display

Custom-designed single cable power and data connection

Custom-designed high efficiency prop, made from durable marine grade aluminium

Passive cooled fully sealed ESC and motor

Custom-designed quick release mount interface

Adjustable resistance throttle with high-power unlock button

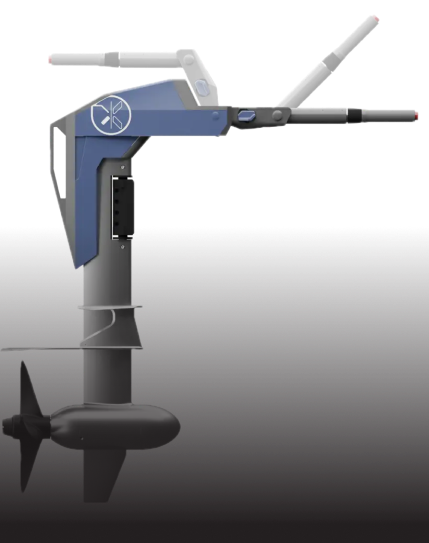

Integrated fold-back tiller

PERFORMANCE

SPEED/KTS Endurance/HRS Distance Travelled NM
2.2 68.7 152
3.2 17.5 55
5.6 4.6 25
11.9 1.3 15
16.2 0.8 12
SPEED/KM/H Endurance/HRS Distance Travelled KM
4.1 68.7 281.9
5.9 17.5 102.3
10.3 4.6 47
22 1.3 28.5
30 0.8 23.1

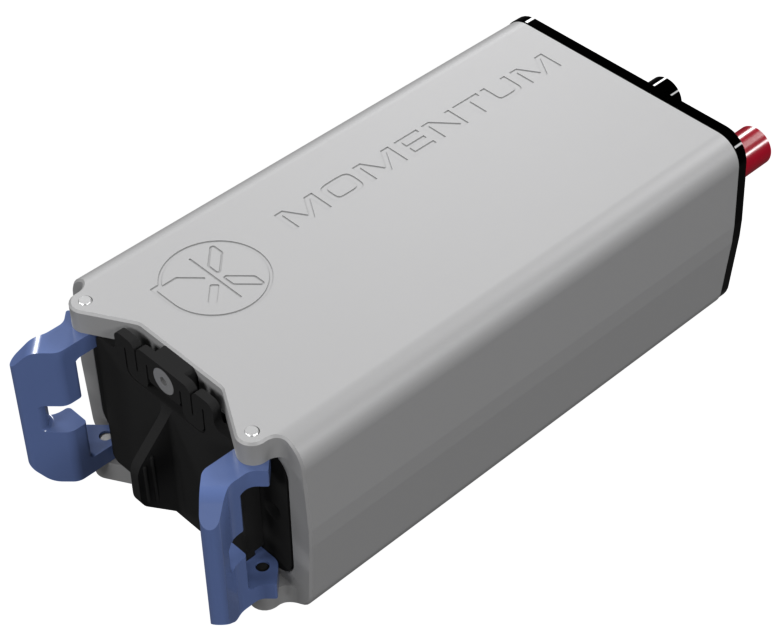

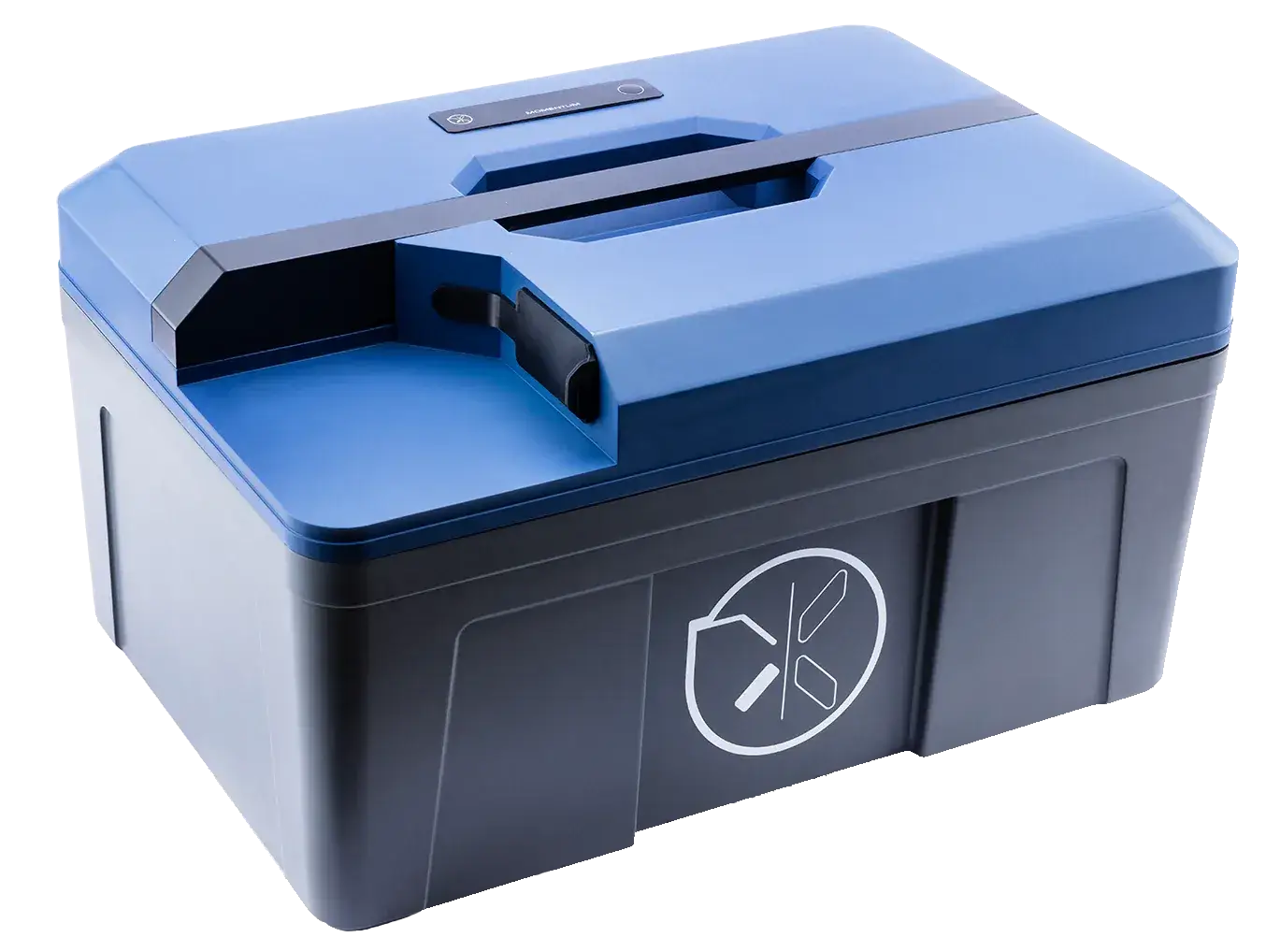

Standard Highfield Classic 310, single man on board, coastal open water conditions, single MB-6 battery.

Key Features

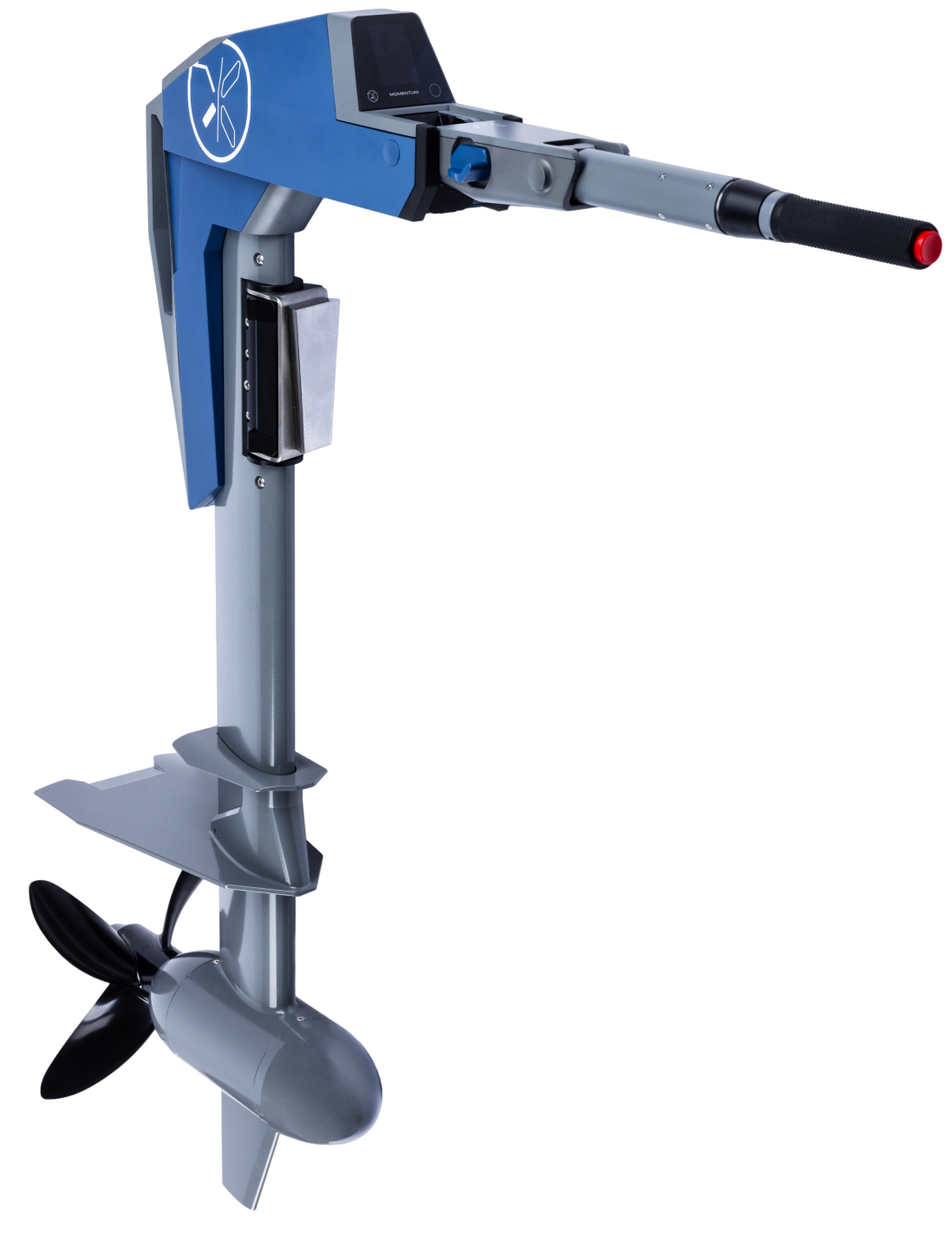

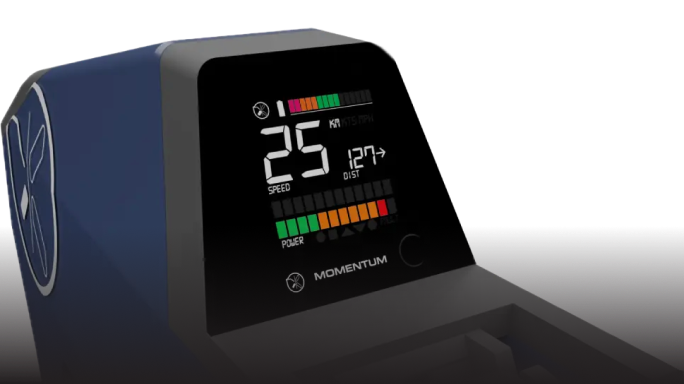

Integrated Screen Display

Integrated Screen

Our high-contrast integrated colour screen gives you key information at a glance, even in bright sunlight.

Safety Features

Safety

Fully integrated Can-Bus interface between the OBM, Battery and Throttle ensure safe seamless operation. A magnetic kill switch, custom IP-rated waterproof connectors and battery give you peace of mind in the worst conditions. Our multi-function tiller with reverse and power mode lockouts make it intuitive for first time users.

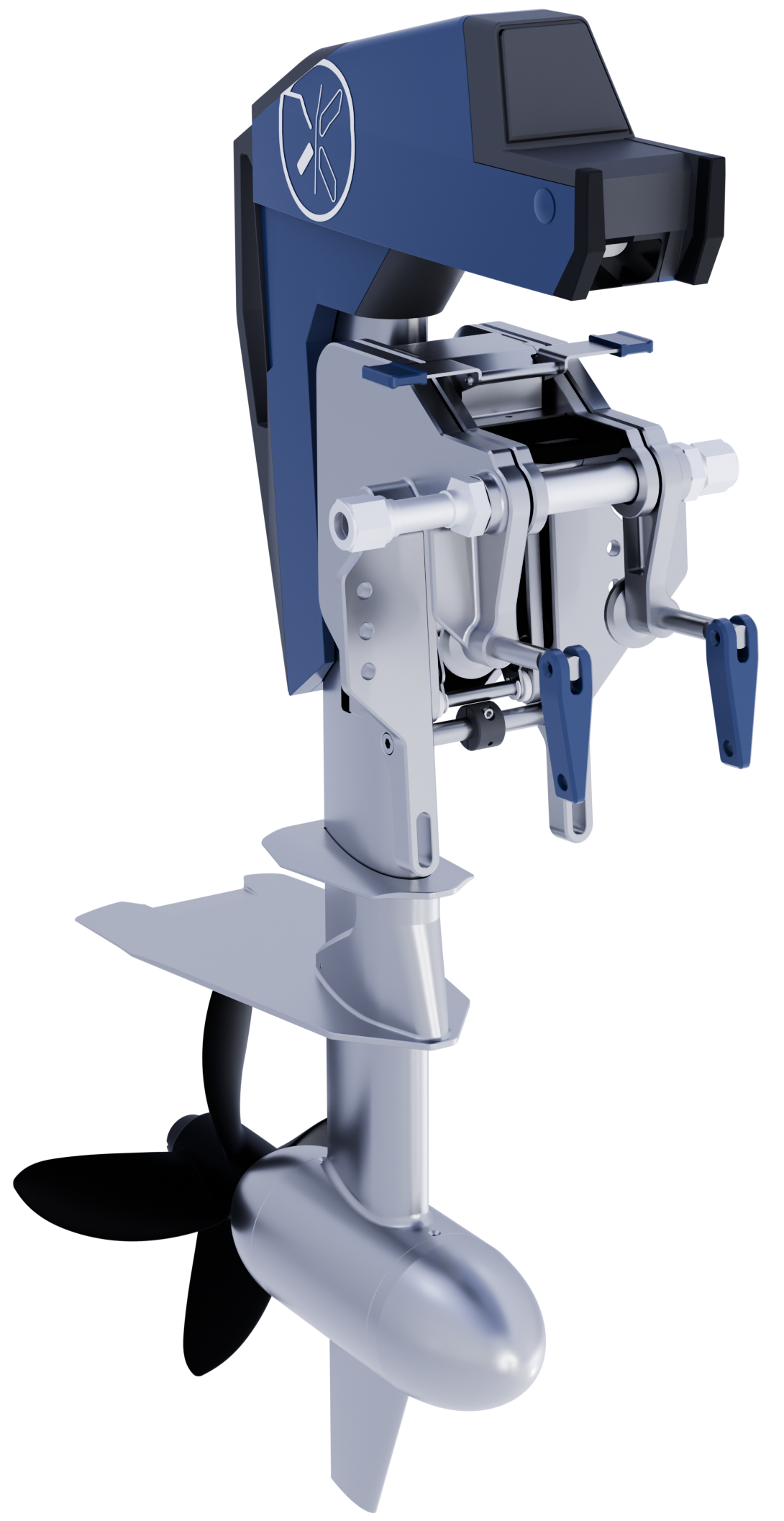

Multi Position Mount

Multi Position Mount

Mount your Momentum OBM in seconds and easily adjust trim with our single-lever action. This is the easiest OBM in its class to install and remove. Leave it mounted on your boat, store it below deck or bring it home with you. Our mount is also compatible with a wide range of common remote steering setups for remote helm operations.

Dimensions & weight

Short stem

Dimensions
39cm
Weight
OBM + Prop: 22kg
Mount: 6kg

Long stem

Dimensions
52cm
Weight
OBM + Prop: 23kg
Mount: 6kg
M-10 Short stem product dimensions M-10 Long stem product dimensions

What's in the box

Momentum M-10 OBM with multi-position tiller and trip computer
Quick-release transom mount
Battery charger

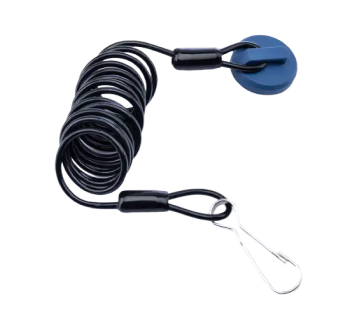

Kill switch x2
Custom aluminium 4-bladed propeller
Integrated power and data cable
Instruction manual
Prop tool
m10 product page logo

For remote applications without a tiller option, our M-10 Remote unit, plug-and-play setup, giving you a wide range of options and high power in the smallest footprint on the market.

PAIRED WITH

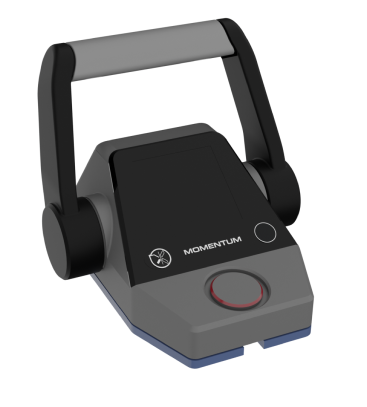

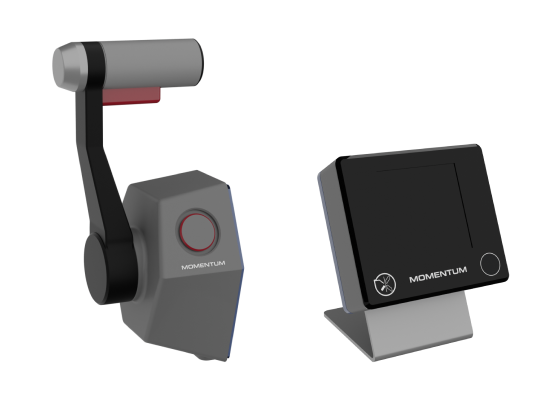

The M-10 Remote is paired with the MT-1 top-mount remote for Single and Twin setups, as well as the MT-2 reversible side-mount throttle.
