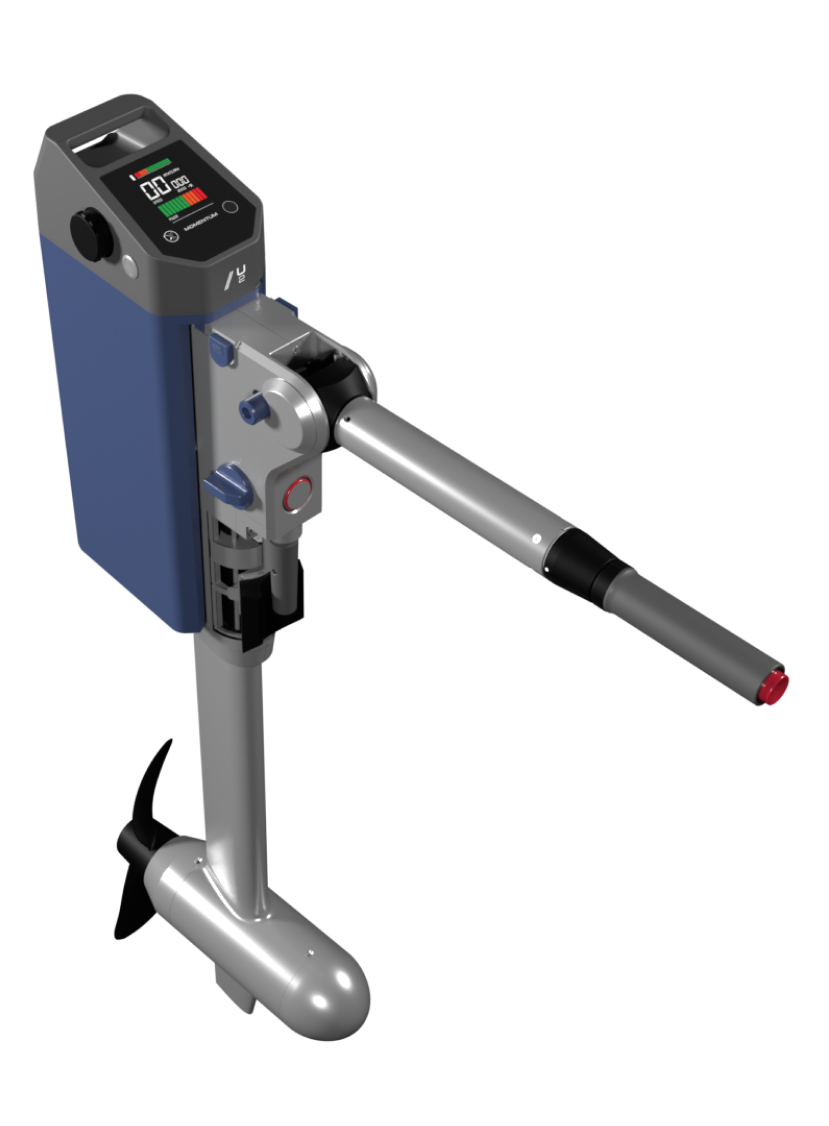

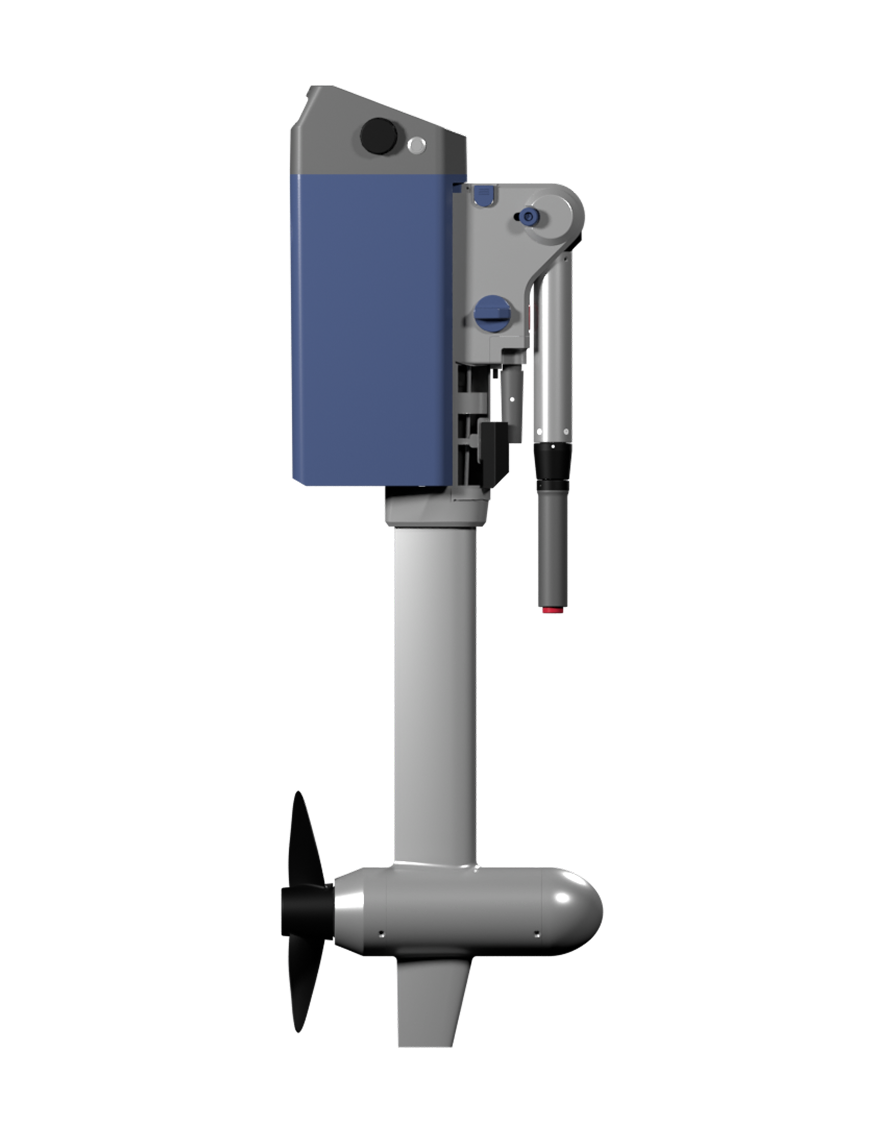

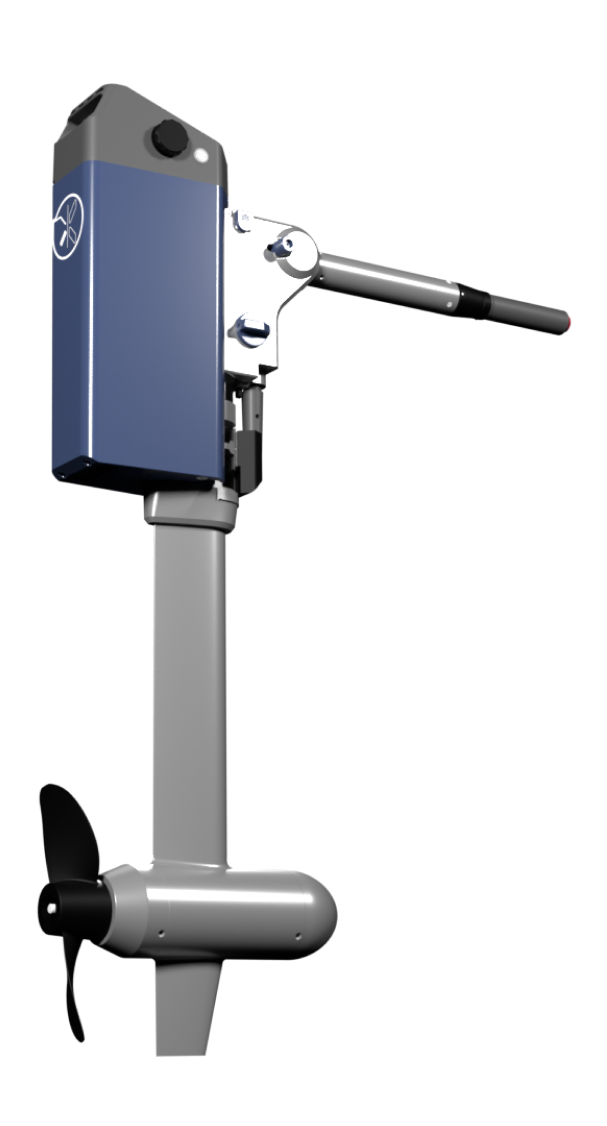

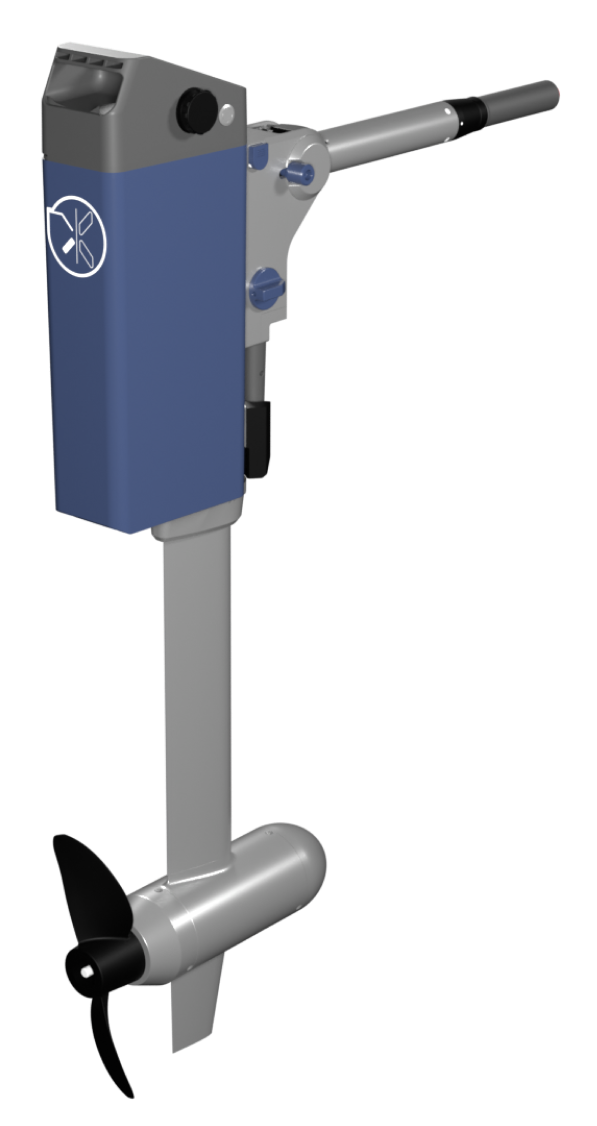

U-2
Compact. Portable. Powerful.

Our U-2 outboard is a full-featured 5 HP equivalent powerhouse with smart features for a wide range of applications. Quick-swap integrated battery and robust construction makes this the perfect electric outboard for tenders , sailboats and small workboats.

TECHNICAL U-2 ELECTRIC OUTBOARD MOTOR

MAX INPUT POWER
2.5KW
SHAFT LENGTH
39cm short / 52cm long
Prop diameter
25cm
No. of blades
2
Cooling system
100% external passive seawater
Battery
1.4 kWH Battery with Intergrated Trip computer
Total Weight
17kg

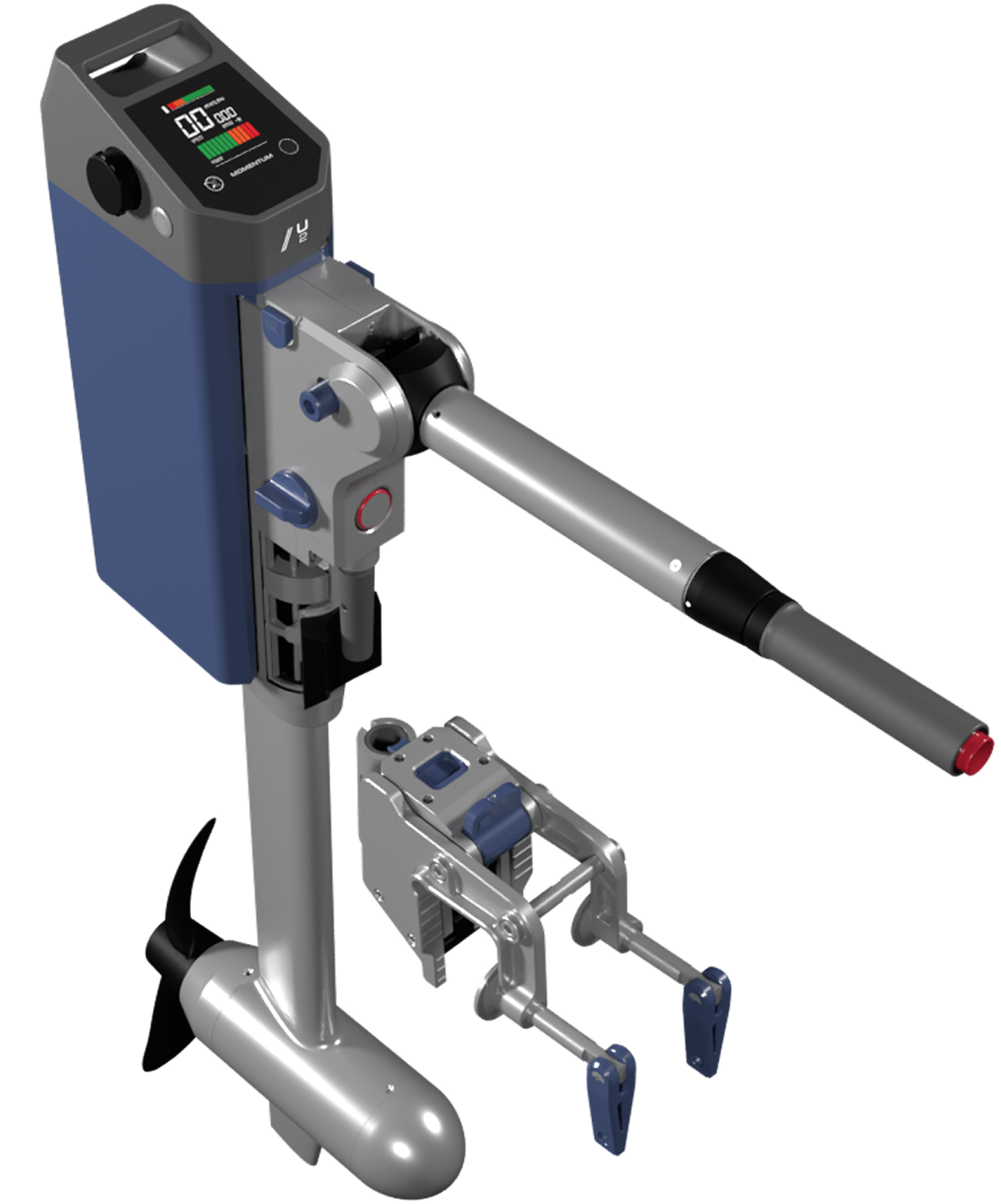

m10-section-second-section-image
1
2
3
4
5
6
7
8

Integrated trip computer with GPS

Quick swap battery

Kill switch

Quick release mounting clamp

Custom high efficiency propeller

Multi-function foldaway tiller

Safety button

Steering lock

PERFORMANCE

Ezraft Q360

SPEED/KTS Endurance/HRS Distance Travelled NM
3.0 18.3 55
4.0 3.3 13
5.0 1.5 7
9.0 0.6 6
SPEED/KM/H Endurance/HRS Distance Travelled KM
5.6 18.3 102
7.4 3.3 24
9.3 1.5 14
16.7 0.6 10

Takacat T300LX

SPEED/KTS Endurance/HRS Distance Travelled NM
3.0 9.7 29
4.0 3.0 12
5.0 1.6 8
8.0 0.8 6
SPEED/KM/H Endurance/HRS Distance Travelled KM
5.6 9.7 54
7.4 3.0 22
9.3 1.6 15
14.8 0.8 11

Highfield Classic 310

SPEED/KTS Endurance/HRS Distance Travelled NM
3.0 7.7 23
4.0 2.3 9
5.0 1.0 5
6.0 0.7 4
SPEED/KM/H Endurance/HRS Distance Travelled KM
5.6 7.7 43
7.4 2.3 17
9.3 1.0 9
11.1 0.7 7
*Single man on board, calm coastal water conditions

Key Features

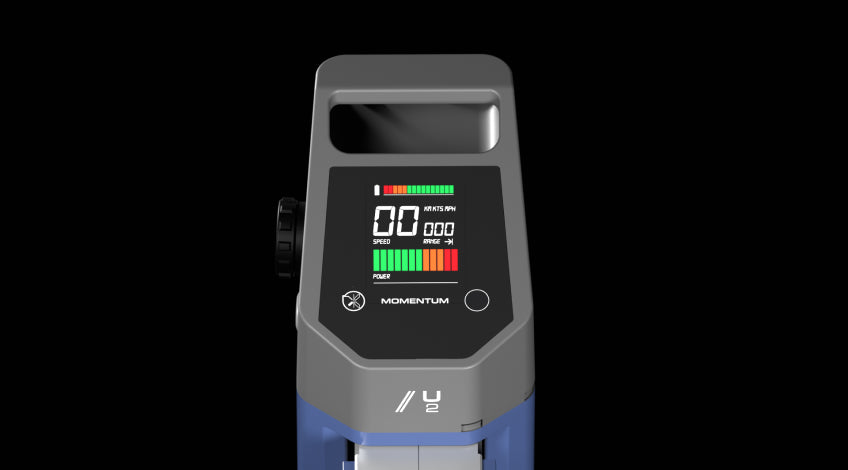

Integrated Trip Computer with Battery

Integrated Trip Computer with Battery

Our high contrast integrated colour screen gives you key information at a glance, even in bright sunlight.

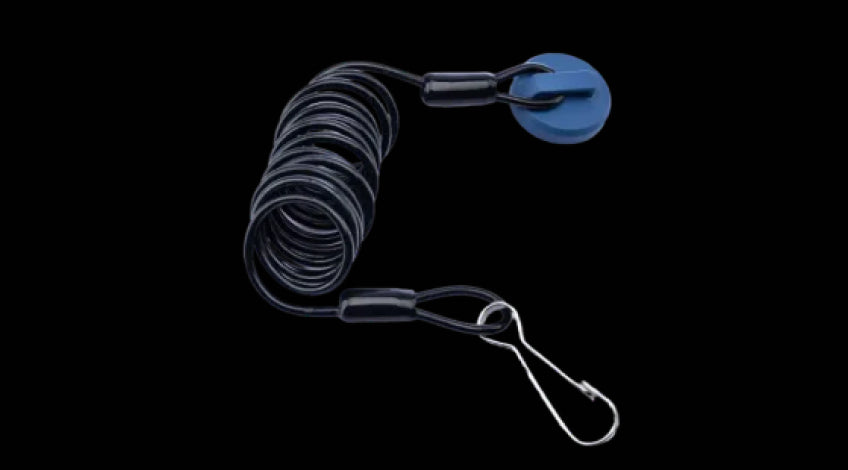

Safety Features

Safety

Fully integrated CAN bus interface between the OBM, Battery and Throttle ensure safe seamless operation. A magnetic kill switch, custom IP-rated waterproof connectors and battery give you peace of mind in the worst conditions. Our multi function tiller with full power mode and reverse lockouts make it easy for first-time users.

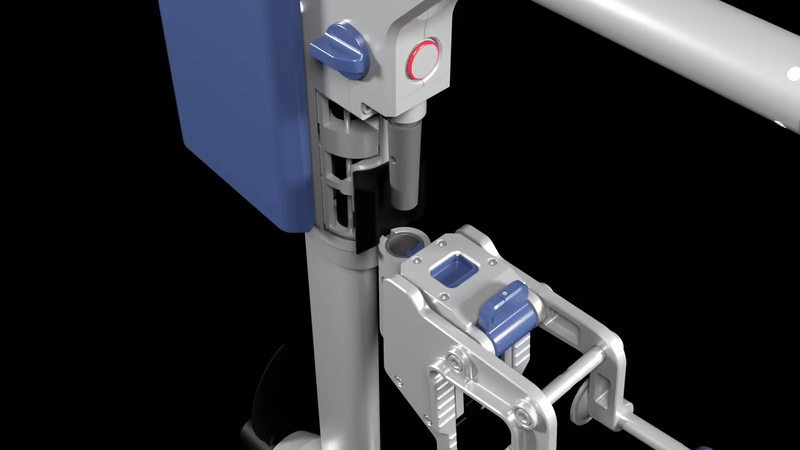

Multi Position Mount

Multi Position Mount

Mount your Momentum OBM in seconds and easily adjust trim with our single-lever action. This is the easiest OBM in its class to install and remove. Leave it mounted on your boat, store it below deck or bring it home with you. Our mount is also compatible with a wide range of common remote steering setups for remote helm operations.

Dimensions & weight

Short stem

Dimensions
39cm
Weight
OBM + Prop: 17kg
Mount: 2kg

Long stem

Dimensions
52cm
Weight
OBM + Prop: 17.5kg
Mount: 2kg
U-2 Short stem product dimensions U-2 Long stem product dimensions

What's in the box

Momentum U-2 OBM with multi-function foldaway tiller and quick-swap battery with integrated trip computer
Quick-release transom mount
Battery charger
Kill switch x2
Plastic composite 2-bladed propeller
Instruction manual
Prop tool

Suitable for remote setup

For remote applications, the U-2 provides an extremely compact, plug-and-play setup, giving you a wide range of options and great power in the smallest footprint on the market.

PAIRED WITH

The U-2 can also be paired with the MT-1 top-mount or MT-2 side-mount remote throttle
